Transfer
Engineered for optimal stability, maximum clearance, and high-speed cold & hot heading applications across all major press brands.

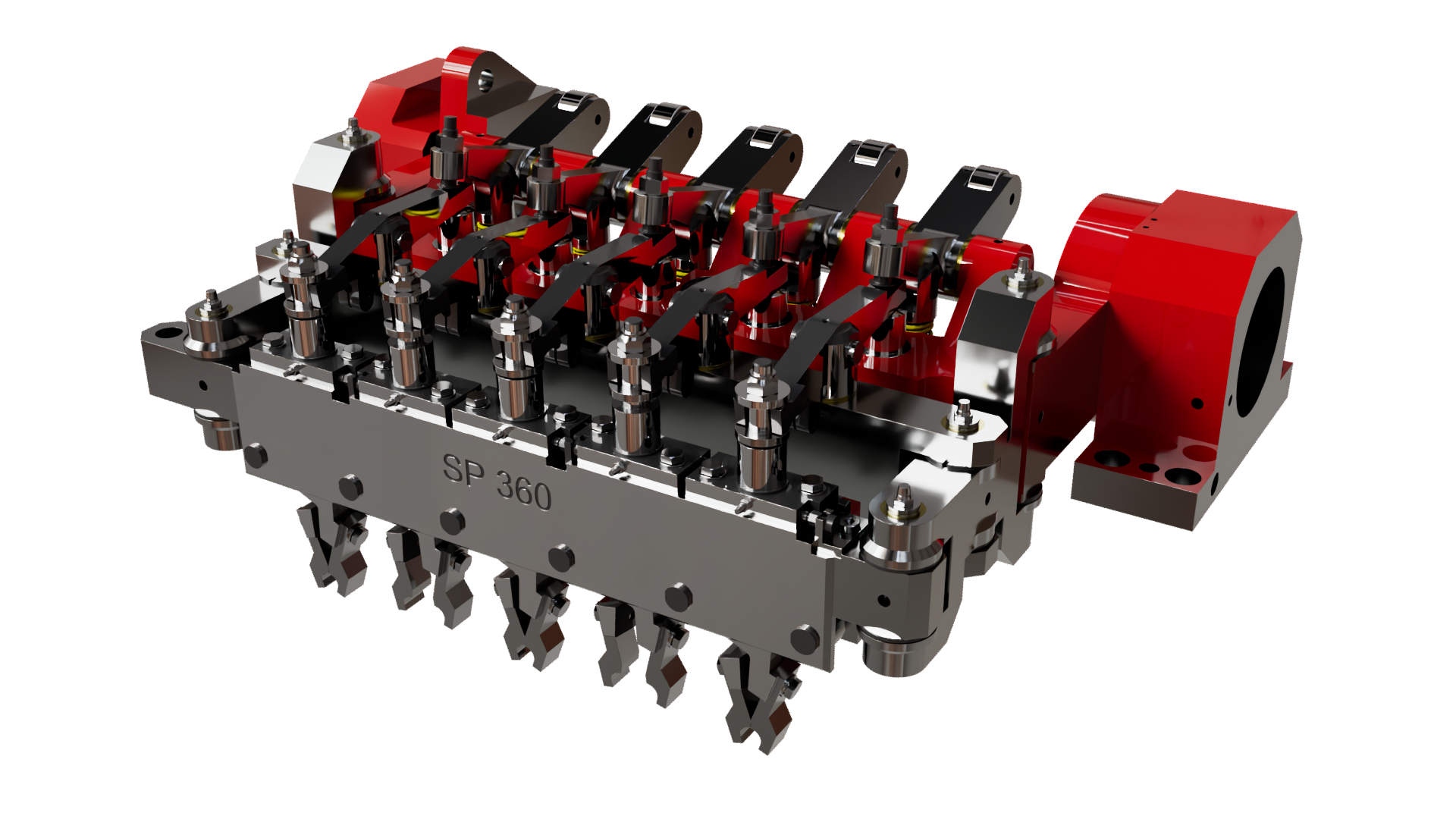

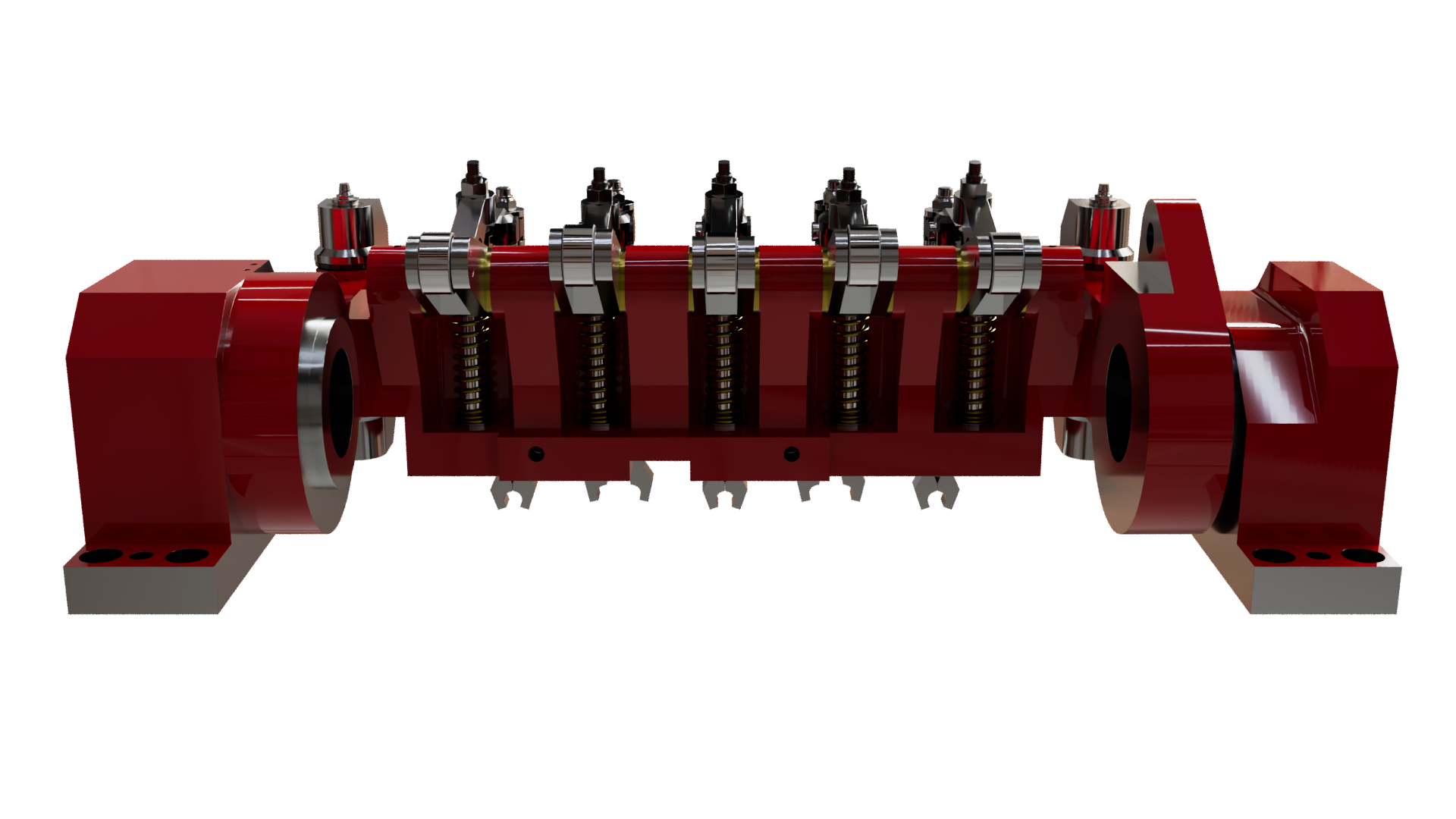

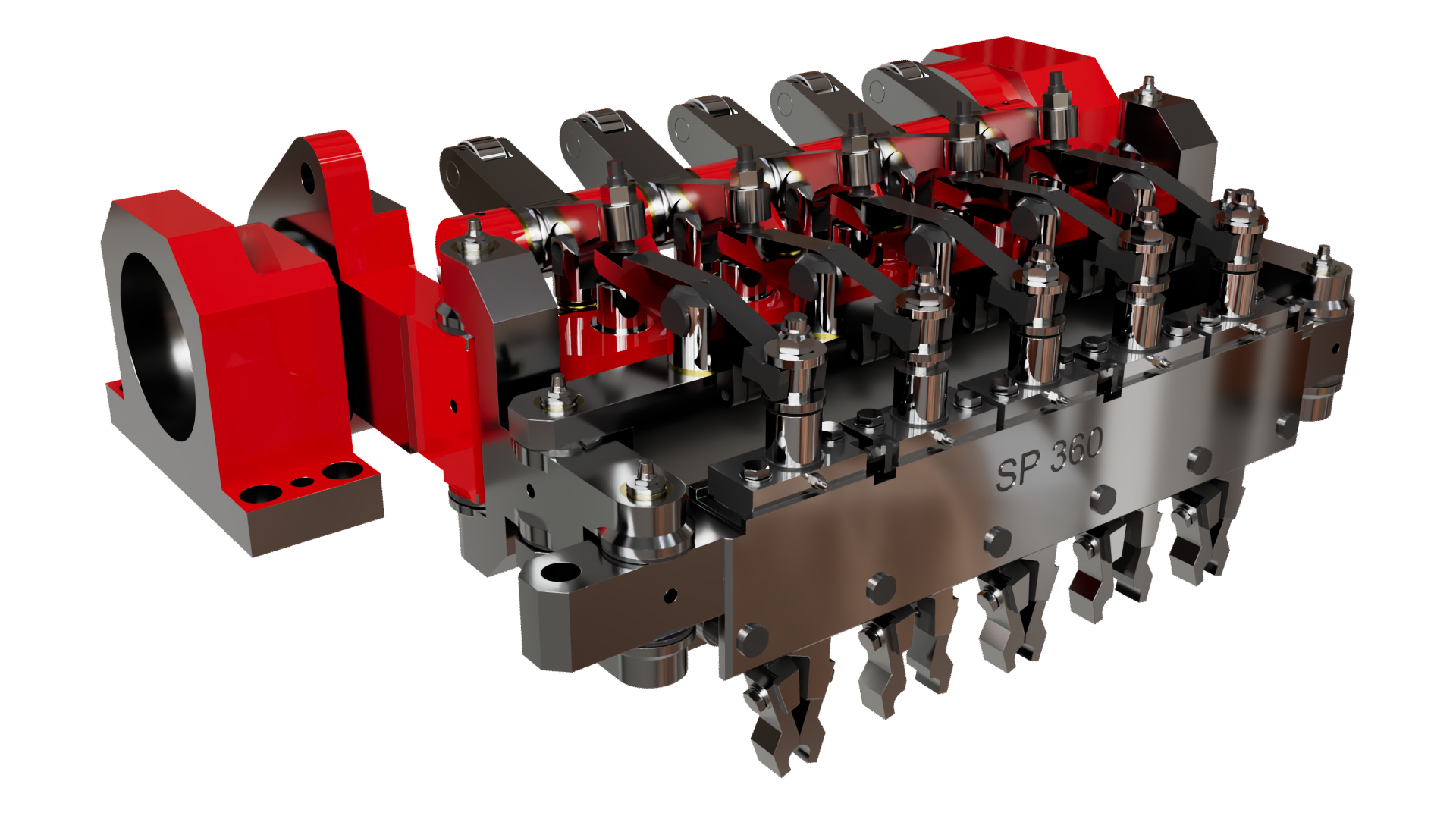

Transfer Design for all Heading Machine Brands
The Transfer is, without a doubt, the most sensitive group in a heading machine. A good transfer guarantees few machine stops, consequently achieving better productivity and a larger range of parts that can be produced.
We develop Transfers that can be adapted to machines from other manufacturers, without altering the original features of the machine. The process can be reversed to return to the original condition at any time
The Transfer is driven by a pair of conjugated cams, designed for smooth movement, especially when inserting parts into the dies, thus avoiding dangerous oscillations of the parts. Obviously, if the parts do not fluctuate at the time of insertion, there will be a significant reduction in the probability of failure at this stage.
The large opening of the fingers allows the extraction of the dies without the need to lift the Transfer group, allowing the formation of heads of large diameters. The diameter of the head, which can pass beneath the fingers, is the largest compared to all machines on the market.
Special Projects Highlight
Recently, a project was engineered for a vertical press Transfer intended for the production of nuts (hot forged) up to 4 inches with a 115 millimeters ex-key.
Key Technical Advantages
-
1
Conjugated Cams Drive Ensures vibration-free motion and precise alignment during high-speed insertion.
-
2
Maximum Finger Clearance Wide finger opening facilitates die extraction and accommodates market-leading head diameters.
-
3
Reversible Retrofits Retrofit third-party machinery without permanent structural alterations.
-
4
Hot & Cold Forging Support Heavy-duty capabilities engineered for high-temperature and heavy-tonnage applications.
